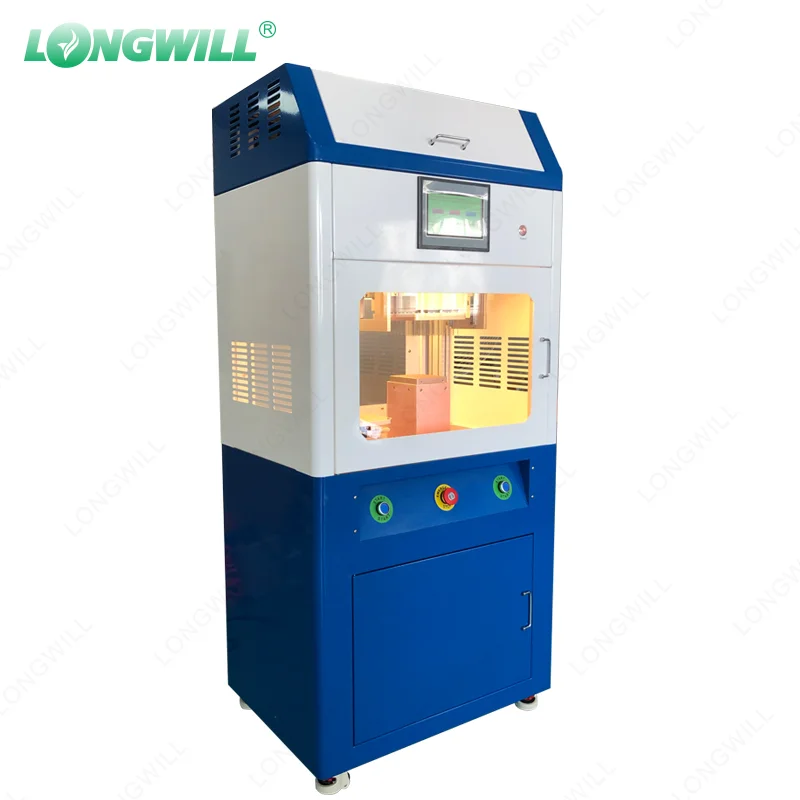

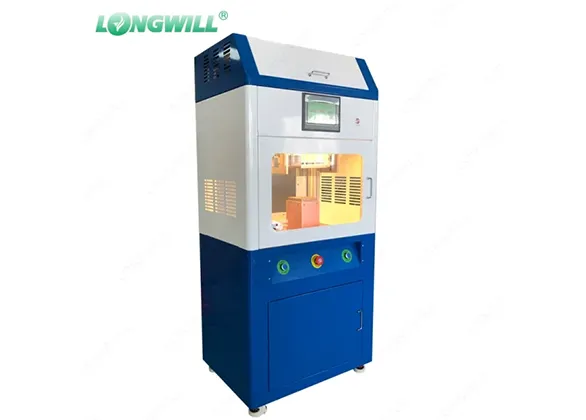

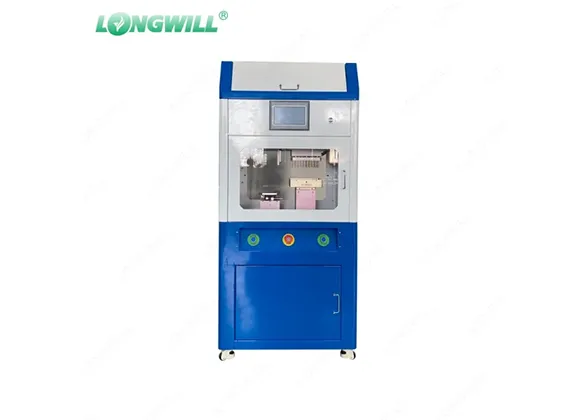

Longwill FM-12
100-Piece Tray Vape Cartridge Automatic Filling Machine
The FM12 organizes up to 100 compatible cartridges, pens, or pods in one tray, allowing programmed filling to continue across the loaded batch with less repeated handling. Designed for e-liquid and other relatively fluid oils, the machine combines customized product positioning with touch-screen control for organized cartridge production.
Ideal For
- Cartridge manufacturers increasing their batch size
- Producers filling e-liquid and relatively fluid oils
- Teams reducing repeated cartridge loading and positioning
- Production lines working with compatible cartridges, pens, or pods
FM12 Cartridge Filling Challenges at Larger Batch Sizes
Larger batches become harder to manage when product loading, filling alignment, and operating settings cannot remain consistent throughout production.
1. Repeated loading interrupts production
Placing cartridges into the filling position one at a time adds operator work and breaks the rhythm of larger production runs.
2. Product alignment changes across formats
Cartridges, vape pens, and pods can use different dimensions and fill-port locations. An unsuitable tray may prevent the filling needle from reaching the correct position.
3. Unstable settings affect batch consistency
Frequent changes to filling volume, speed, or interval make it difficult to reproduce an established process across recurring orders.
Organize Larger Batches with the FM12 Vape Cartridge Filler Machine
Load up to 100 compatible devices before filling begins
Keep each product arranged in its assigned tray position
Let programmed movement carry filling across the loaded batch
Complete larger orders with fewer loading interruptions
Less Manual Loading
Larger Batch Handling
Consistent Positioning
Repeatable Production
Easier Batch Scaling
FM12 Core Capabilities for Batch Cartridge Filling
The FM12 organizes larger batches through tray-based positioning, programmable movement, and controlled filling settings.

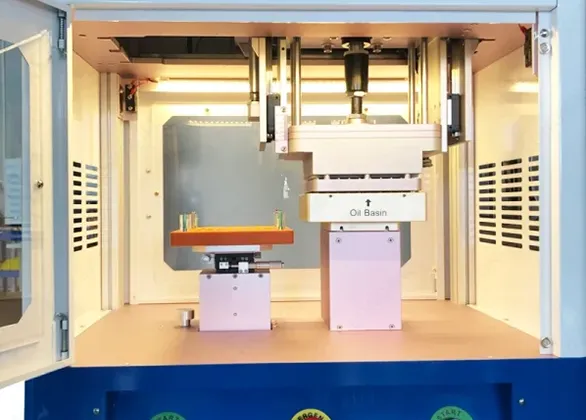

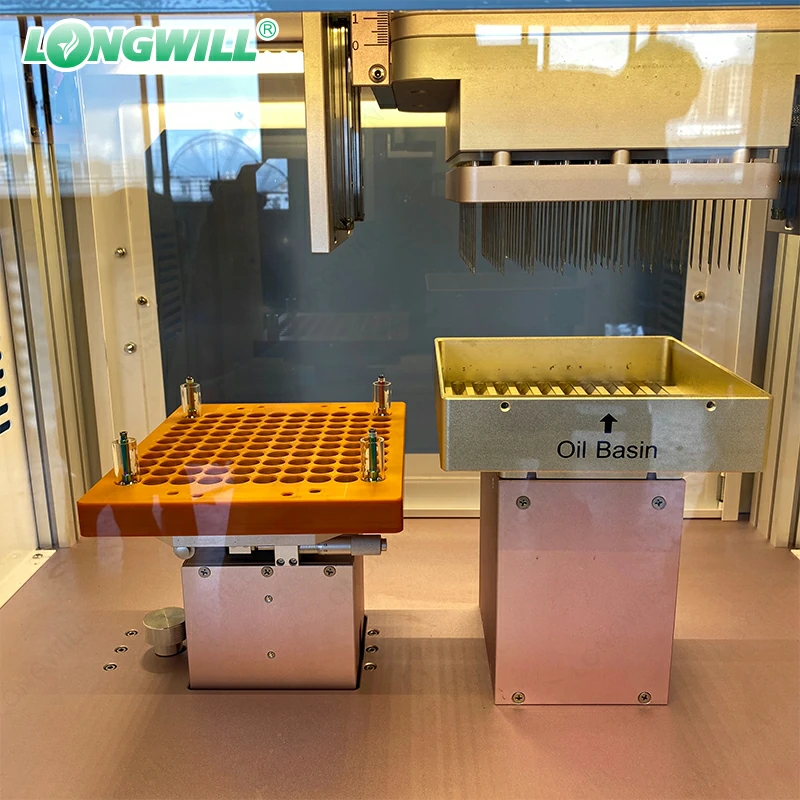

A tray prepared for larger batches
Up to 100 compatible products can be arranged before filling begins. This format reduces repeated loading during a production run and gives operators a clearer view of batch progress.
Programmed movement across the tray
Stepper-motor and rail-drive control coordinate the filling movement between product positions. Once the setup is confirmed, the machine follows the selected program across the batch.

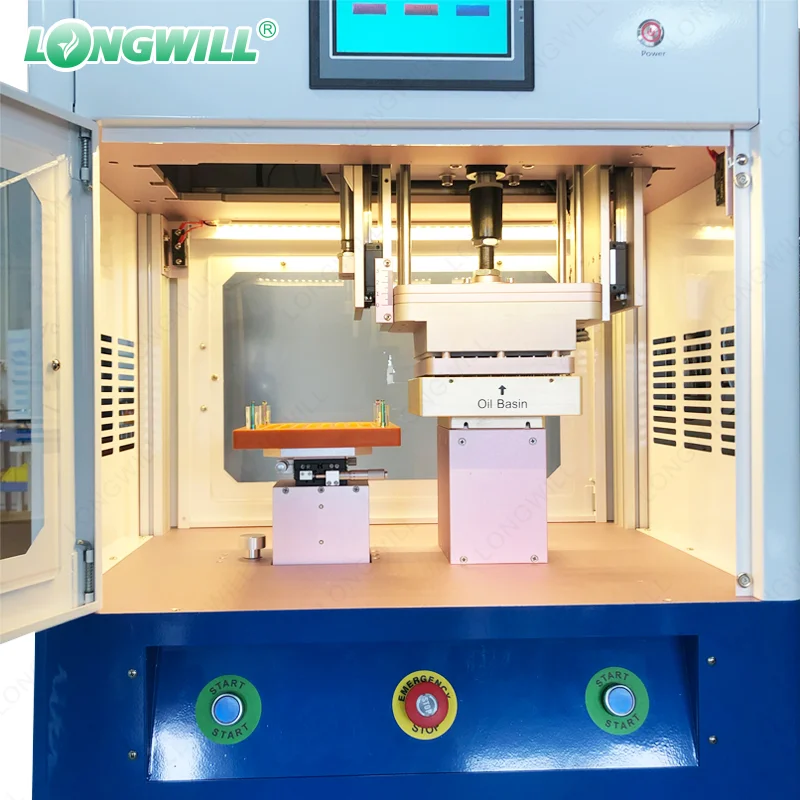

Settings managed from one screen
Operators can adjust filling volume, speed, interval, positioning, and cleaning procedures through the seven-inch touch screen. Frequently used settings can be prepared for recurring production.
Hardware-specific product positioning
Cartridge dimensions determine the tray arrangement, fill-port position, and needle alignment. Longwill can customize the filling tray and needle configuration around the selected product.
Temperature control for fluid oils
An adjustable range of 0–150°C allows the operating temperature to be matched to the material being filled. The correct setting must be established from the actual formulation rather than the maximum machine temperature.
Material-contact components selected for filling
The existing configuration lists food-grade silicone tubing and a lead-free injector for the material path. Final material compatibility should still be checked against the customer’s formulation.
FM12 Technical Specifications
| Item | Specification |
|---|---|
| Specification | Longwill FM-12 100-Piece Tray Vape Cartridge Automatic Filling Machine |
| Batch format | Up to 100 pieces per tray |
| Filling volume | 0.2–7 ml* |
| Rated output | 800–1,000 units/hour* |
| Filling accuracy | ±1% |
| Oil tank | 950 ml |
| Temperature range | 0–150°C |
| Control panel | 7-inch touch screen with operation controls |
| Drive system | Stepper motor and rail drive |
| Power supply | AC110V/220V |
| Machine dimensions | 710 × 510 × 1,550 mm |
| Machine weight | 120 kg |
| Warranty | 12 months |
Cartridge, Pod, and Vape Pen Filling Machine Applications
Customized trays allow the FM12 to support different compatible hardware while retaining the tray-based workflow used for larger production batches.
1. Cartridge Batch Production
Compatible cartridges can be arranged across the tray before the filling run begins, reducing the need to position each device separately during production.
2. Vape Pen Filling
Once pen dimensions and filling positions are confirmed, the corresponding tray keeps each unit aligned throughout the batch. This makes the FM12 suitable as an automatic vape pen filling machine for compatible hardware.
3. Pod System Filling
Compatible pods require a tray designed around their external dimensions and oil inlet. Samples should be tested before the production configuration is finalized.
FM12 Cartridge Filling Customer Reviews
See how production teams use tray loading, customized positioning, and programmed settings to manage recurring cartridge batches.
“Preparing the tray before filling gives our operators a clearer production rhythm and reduces repeated cartridge handling.”
“Once the tray was matched to our hardware, checking cartridge alignment before each production run became much easier.”
“Saved filling settings help our team repeat routine orders without rebuilding the operating setup from the beginning.”
See the FM12 100-Piece Tray in Operation
Get an Efficient, Precise, and Automated Filling Solution
Contact Longwill engineers to find the right production solution for your needs.
