Longwill FM03
Heated Cartridge Filling Gun for Thick Oil

FM03 is a compact handheld cartridge filling gun built for thick oils and flexible production. Internal heating, a short oil path, a large oil inlet, and a removable 50ml transparent glass reservoir help operators keep viscous oil moving while making cleaning and product changeovers easier. The handheld format also removes the need for a custom filling tray.

Ideal for:

  • Small-batch cartridge and vape pen filling
  • Thick distillate and concentrated oil applications
  • Multi-SKU production with frequent product changes
  • Operators who need direct handheld fill-point control
✓ Certified Quality ✓ Fast Delivery ✓ 24/7 Support

When Thick Oil Makes Hand Filling Harder

Viscous oil, changing cartridge formats, and material left in the filling path can slow down flexible small-batch production.

1. Thick Oil Can Be Difficult to Draw and Dispense

High-viscosity distillate and concentrated oils may move slowly through a narrow or insufficiently heated filling path, making handheld filling less consistent.

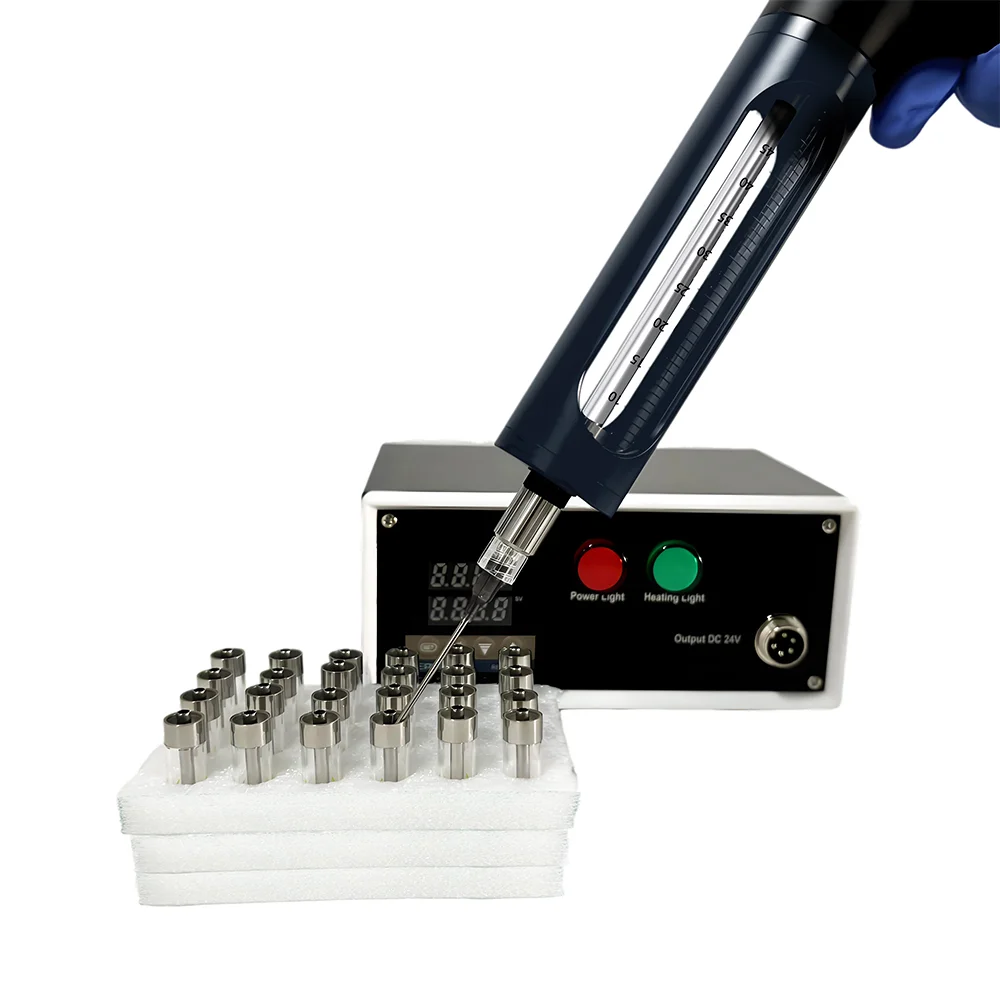

Handheld cartridge filling gun with thick oil

2. Fixed Trays Add Work When Products Change

Different cartridge and pen formats can require different positioning. A workflow that depends on custom trays becomes less convenient when SKUs change frequently.

Filling different cartridge formats

3. Residual Oil Makes Cleaning and Changeovers Slower

Oil left in long tubes or larger transfer paths can increase cleanup time and make it harder to switch between products or formulations efficiently.

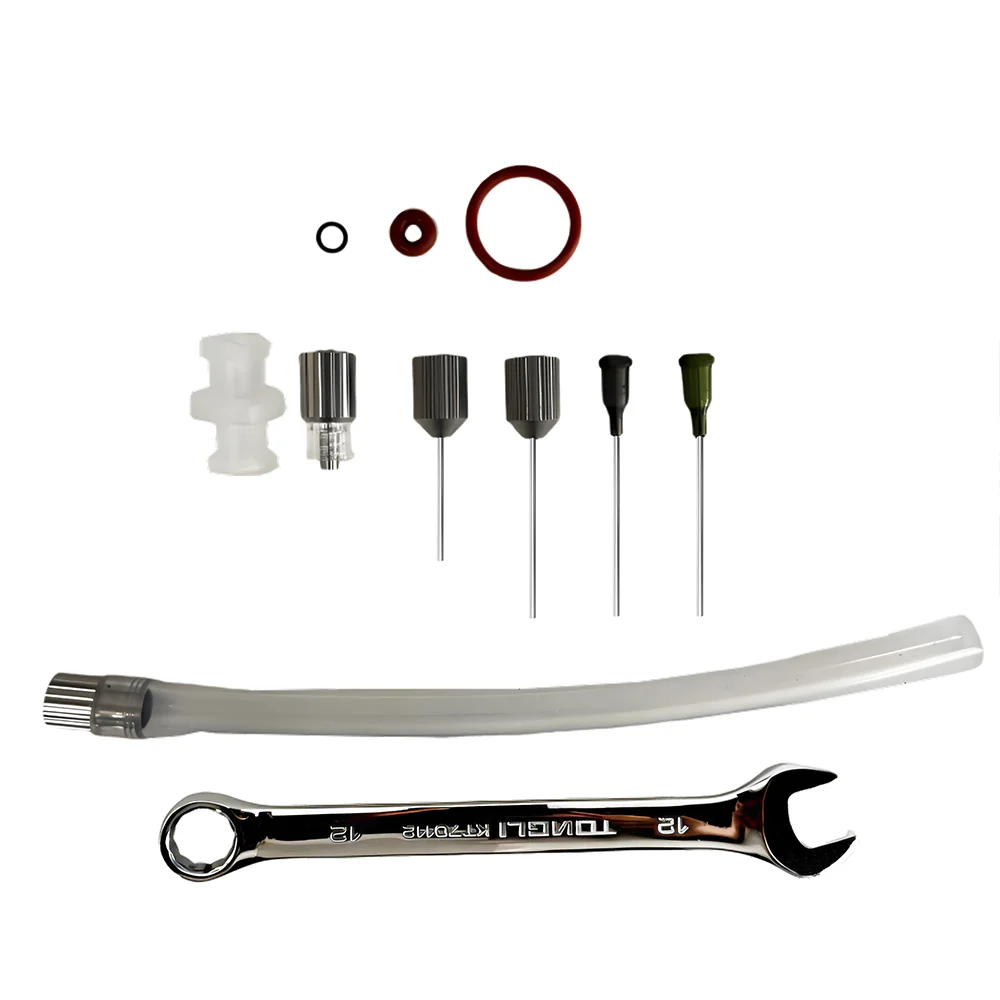

Removable filling components for easy cleaning

Keep Thick-Oil Filling Direct, Heated, and Easy to Change Over

Internal Heating Helps Viscous Oil Flow Inside the Gun

Large Inlet and Outlet Support Thick-Oil Intake and Dispensing

Short Oil Path Reduces Retained Material Between Runs

Handheld Filling Works Without a Custom Tray

FM03 Handheld Filling System for Flexible Cartridge Work

The filling gun combines internal heating, short-path oil transfer, direct handheld positioning, and simple visual oil monitoring in a compact semi-automatic setup.

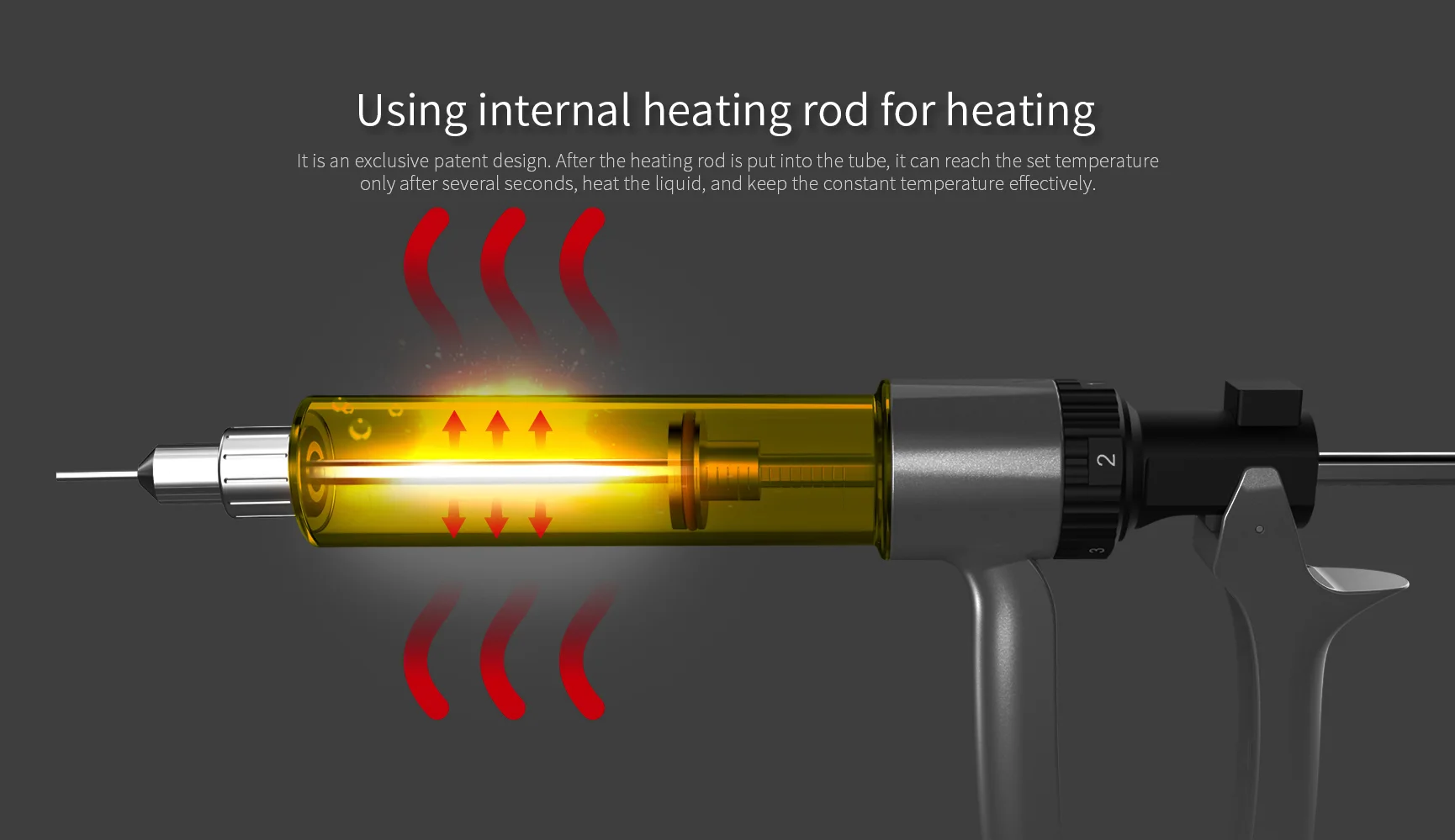

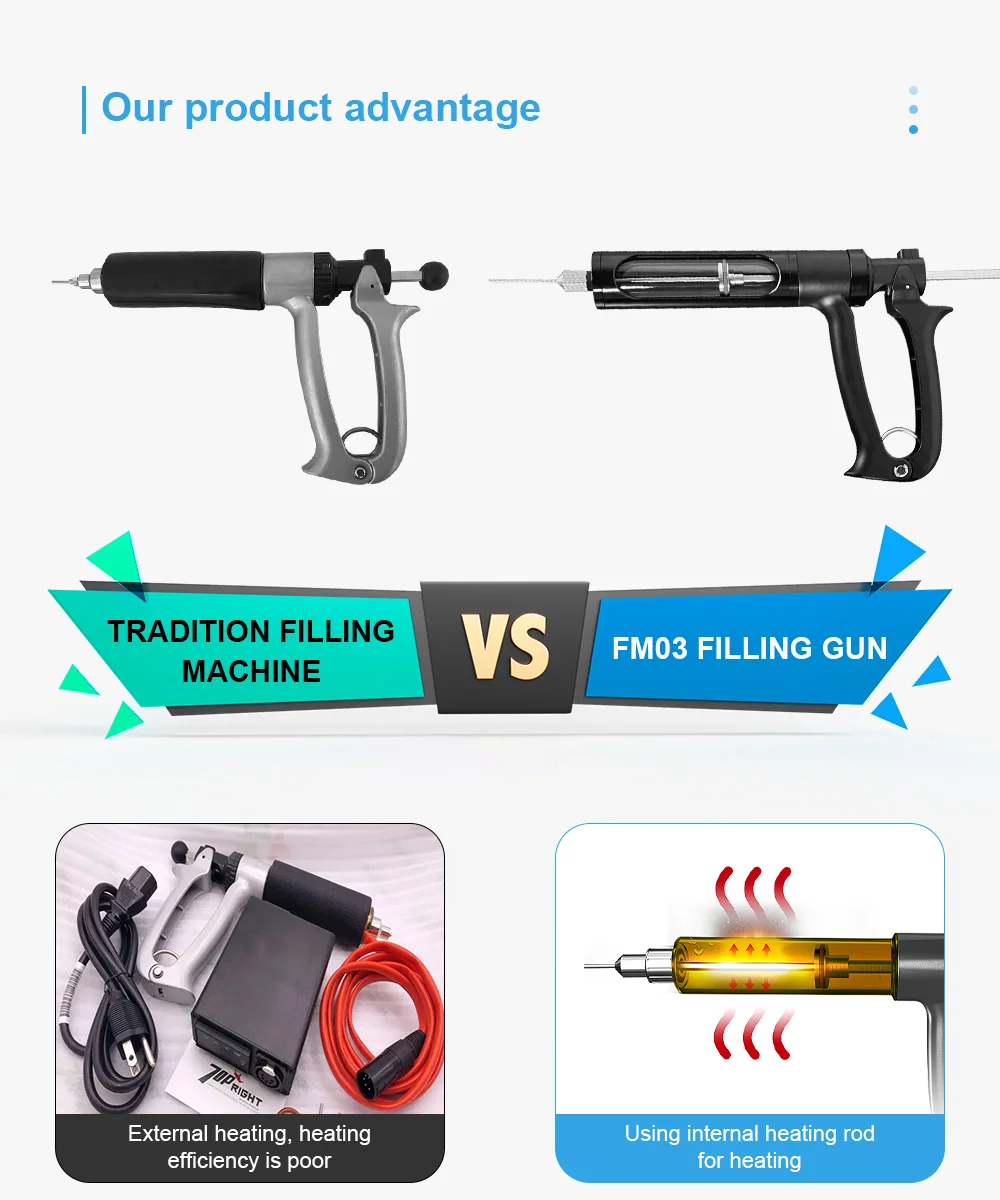

Internal Heating for Thick Oil Flow

An internal heating rod warms the oil from inside the filling gun instead of relying only on an external heating pad, helping viscous material reach a more workable filling condition.

Internal Heating for Thick Oil Flow

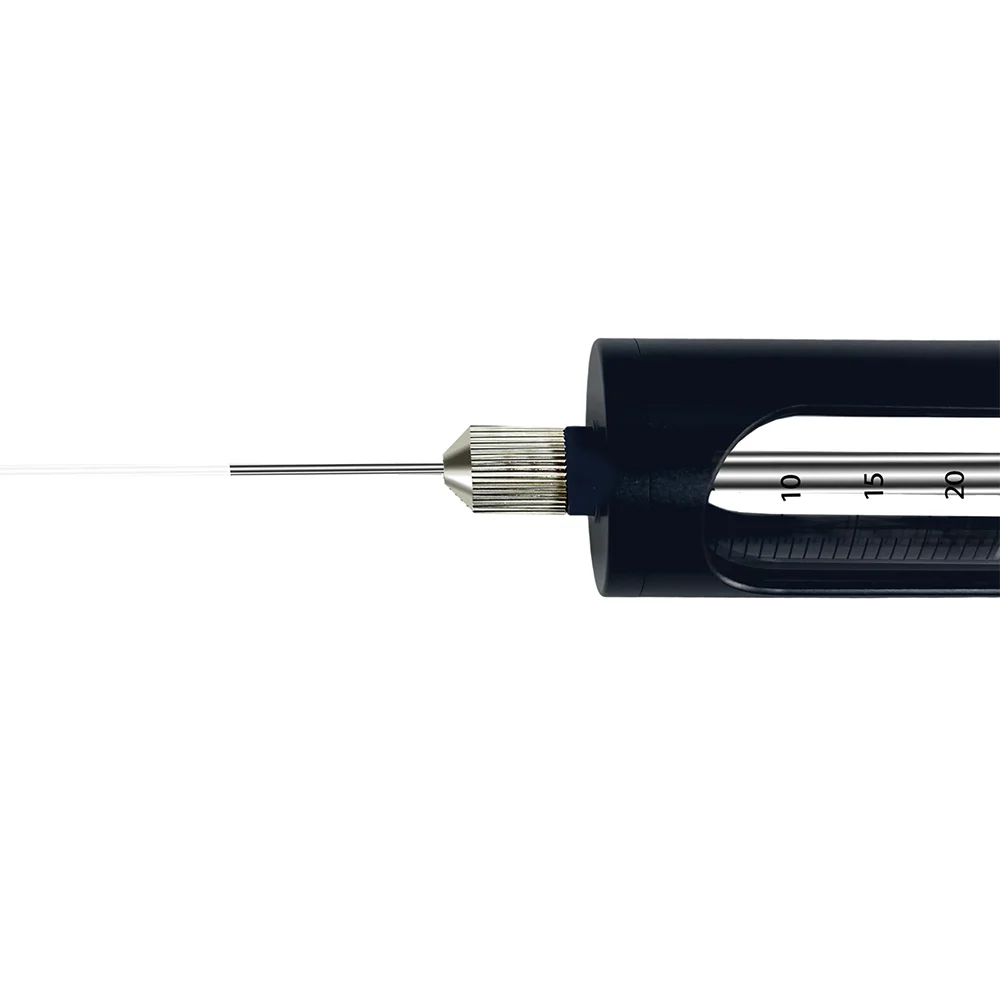

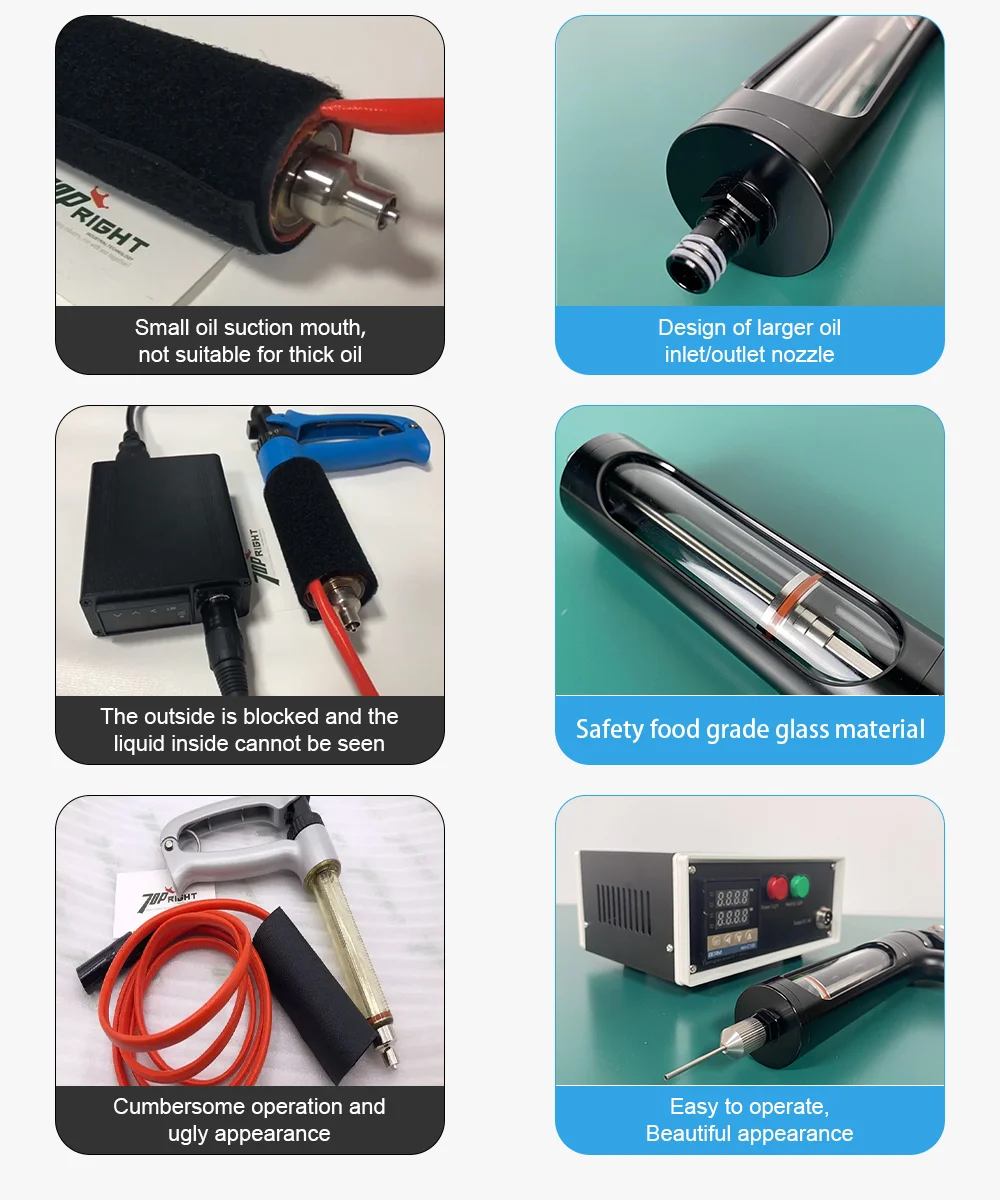

Large Oil Inlet and Outlet

Large Oil Inlet and Outlet

A larger intake and outlet path helps the gun draw and dispense thick oil more easily than a narrow opening, supporting smoother handling of viscous formulations.

Short Oil Path with Removable Tank

The compact transfer path limits the distance oil travels through the system. Combined with a removable reservoir, this helps make cleaning and product changeovers easier.

Short Oil Path with Removable Tank
50ml Transparent Glass Reservoir

50ml Transparent Glass Reservoir

The clear glass oil basin lets operators see the remaining material at a glance. Its 50ml capacity is well suited to flexible runs where oils or product formats may change frequently.

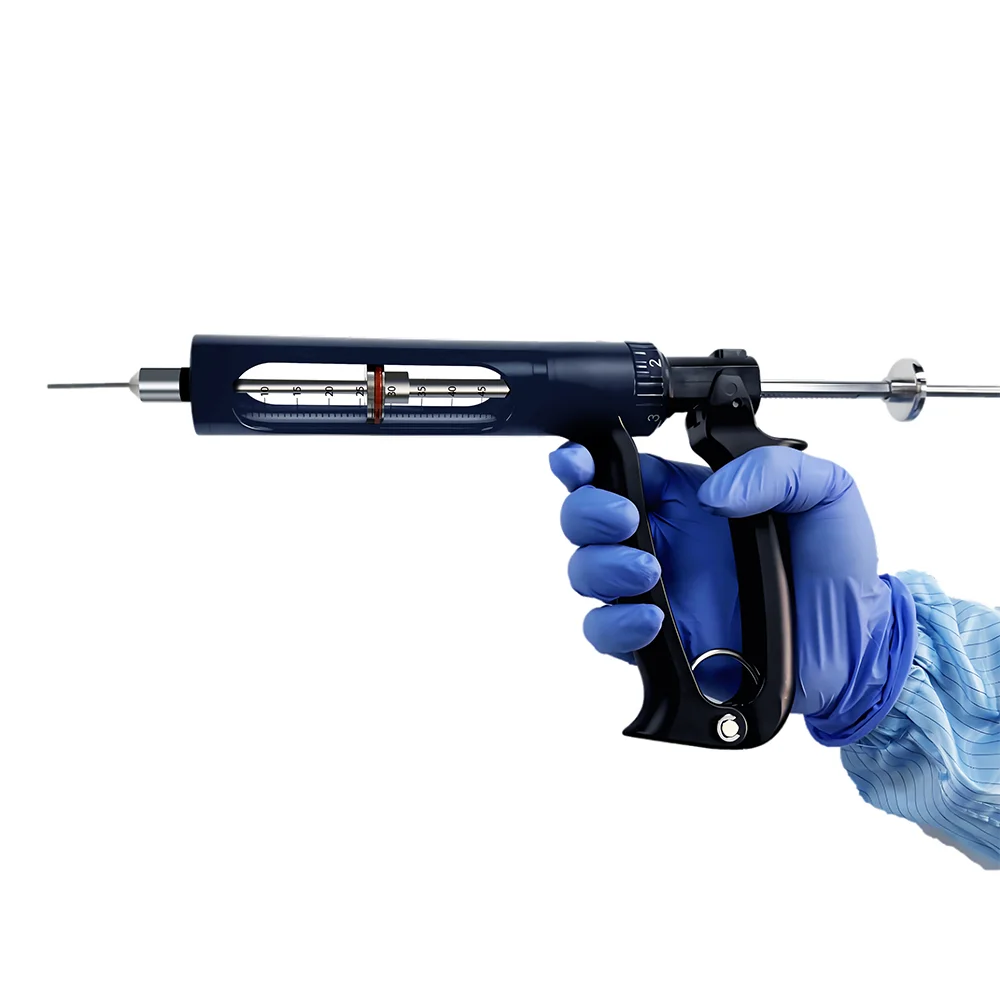

Handheld Filling Without a Custom Tray

Operators position the filling gun directly over cartridges, pens, or compatible products, so production does not depend on a dedicated tray for every product format.

Handheld Filling Without a Custom Tray

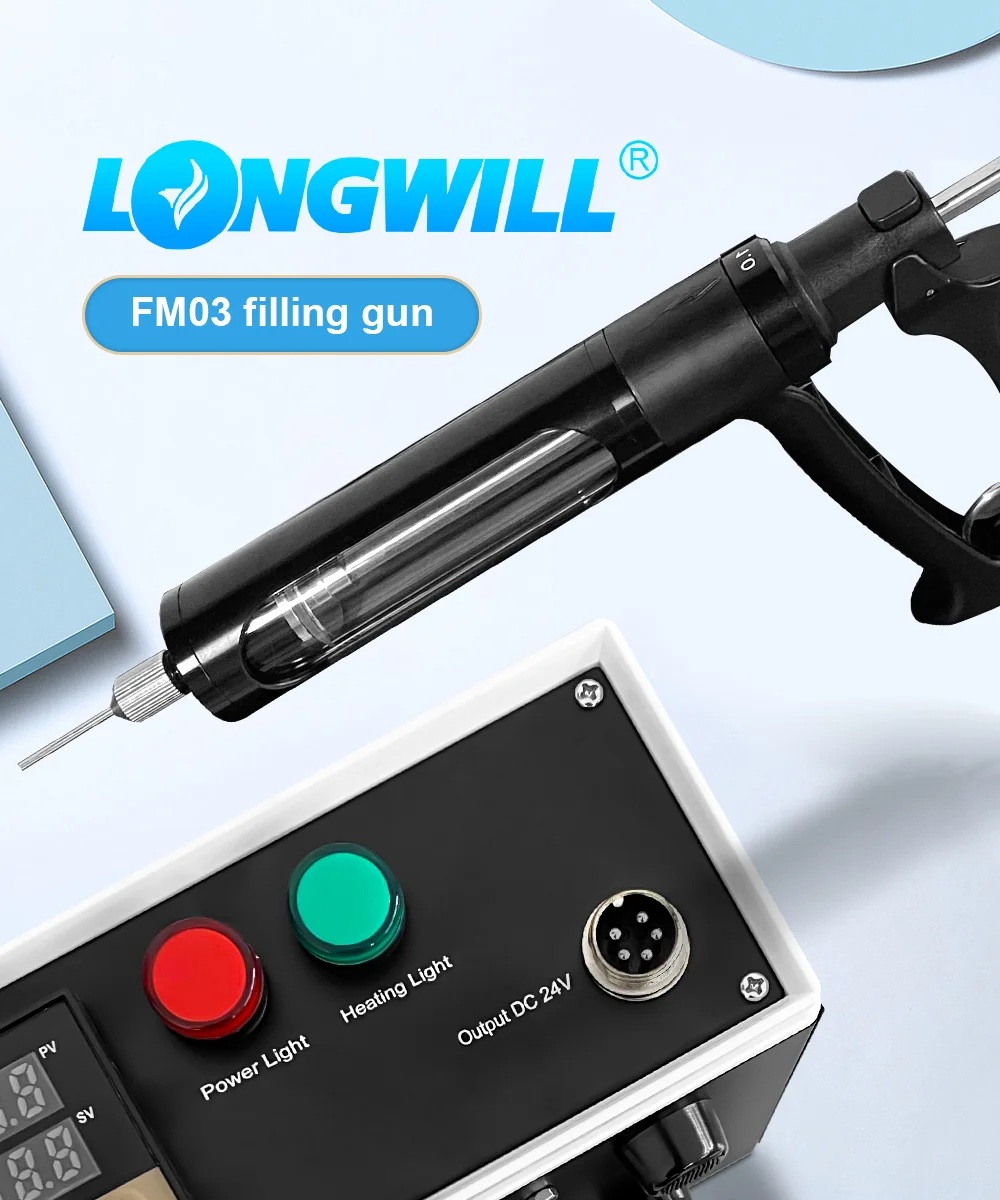

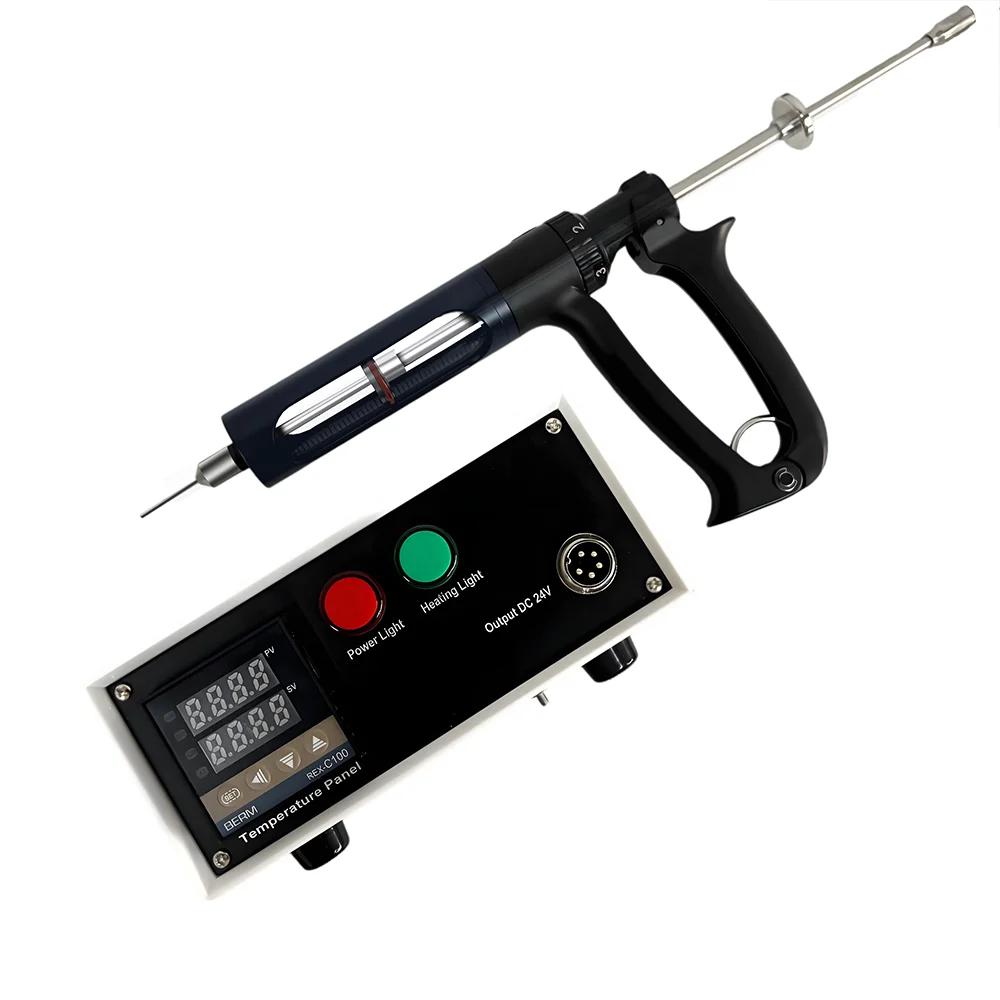

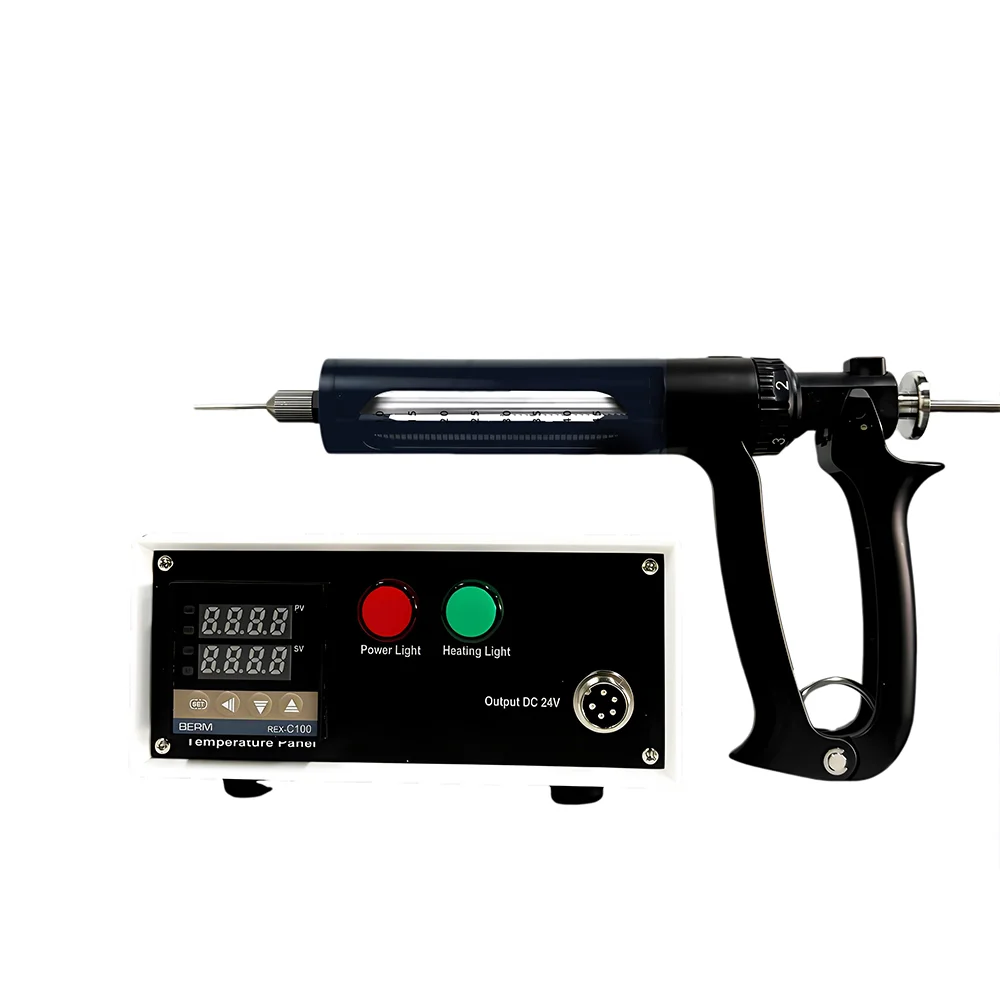

Adjustable Heating and Smart Filling Control

Adjustable Heating and Smart Filling Control

Temperature can be adjusted from 0–100°C through the controller, while Longwill’s smart filling system supports straightforward semi-automatic operation for daily production.

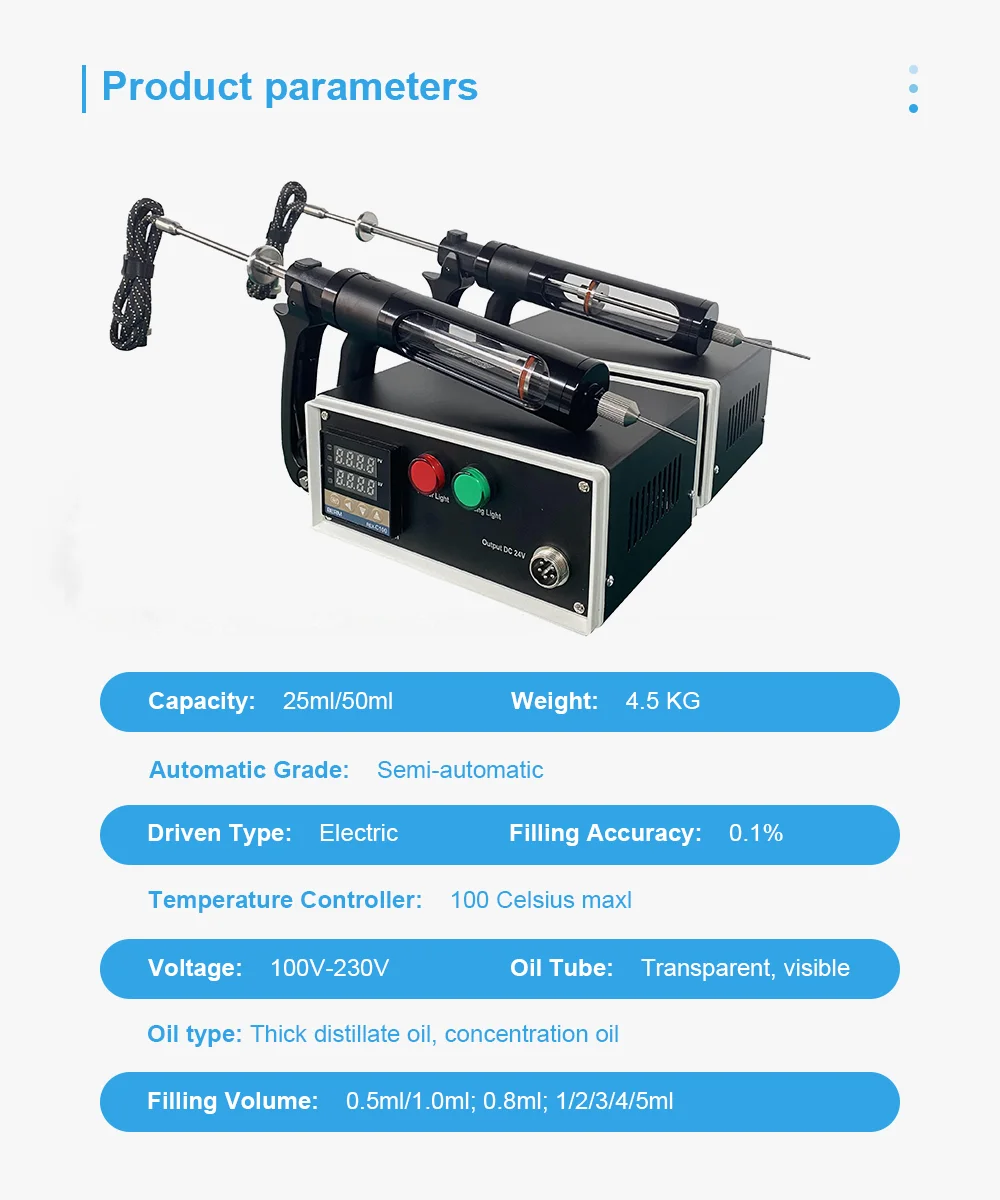

FM03 Technical Specifications

Product NameSemi-Automatic Cartridge Filling Gun
ModelLongwill FM03
Voltage100–240V (110V / 220V compatible)
Power40W
Heating Temperature0–100°C
Filling Volume0.5–2.0ml; common settings include 0.5ml / 0.8ml / 1.0ml / 2.0ml
Oil Filling Accuracy±1%
Productivity400–500 pcs/hour
Oil Basin50ml transparent glass reservoir
DimensionsController: 170L × 130W × 90H mm; Filler: 250L × 35W × 150H mm

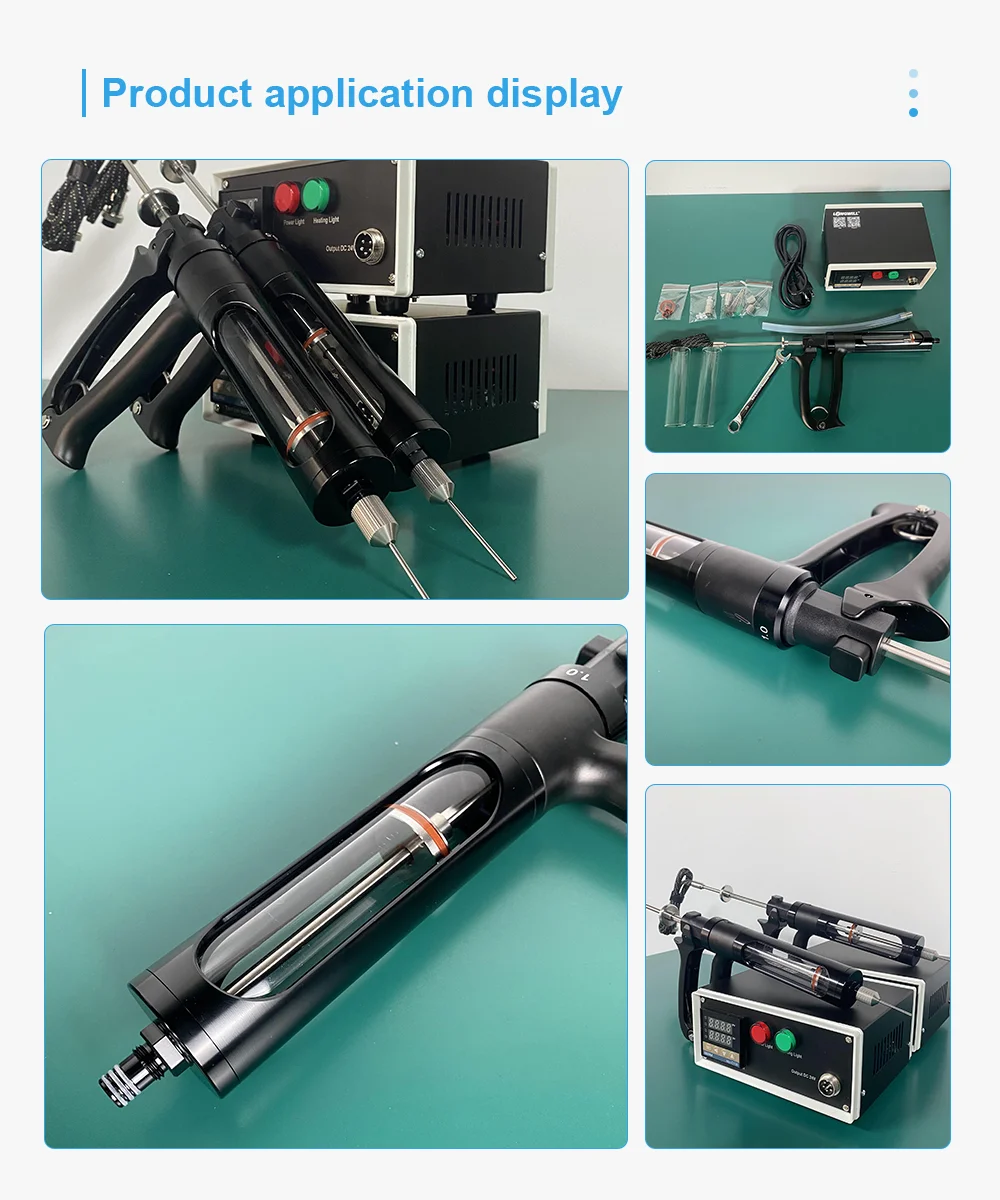

Included Filling ComponentsTemperature controller, heating rod, silicone tube, needles, O-rings and manual

Where a Handheld Cartridge Filling Gun Fits Best

FM03 is most useful when direct positioning, quick product changes, and small-volume oil handling matter more than fixed high-volume automation.

1. Small-Batch Cartridge Runs

A compact 50ml reservoir and handheld filling format make FM03 practical for shorter runs where operators need close control over each fill point.

2. Frequent SKU and Cartridge Changes

Because the gun does not depend on a custom tray, operators can move between compatible cartridge or pen formats with less setup work.

3. Thick Distillate and Concentrated Oils

Internal heating, a large oil inlet, and a short transfer path make the filling gun suitable for viscous oils that need better flow during dispensing.

FM03 Filling Gun in Daily Use

Operators value the cartridge filling gun for its compact handheld design, easier product changes, and practical handling of thick oils.

★★★★★

“Most of our orders are short runs with different cartridge styles. We used to spend too much time changing fixtures. With the FM03, I can move directly from one compatible cartridge format to another without preparing a new tray every time.”

— Custom Vape Production Operator
★★★★★

“We work with thick distillate, so getting the oil to flow properly is always the first concern. The internal heating is useful because the oil is warmed directly in the filling gun instead of depending only on external heating.”

— Distillate Processing Technician
★★★★★

“The 50ml glass reservoir works well for the type of jobs we run. We can see exactly how much oil is left, finish a smaller batch, clean the short oil path, and move on to another product without keeping a large amount of material in the system.”

— Prototype & Small-Batch Specialist
