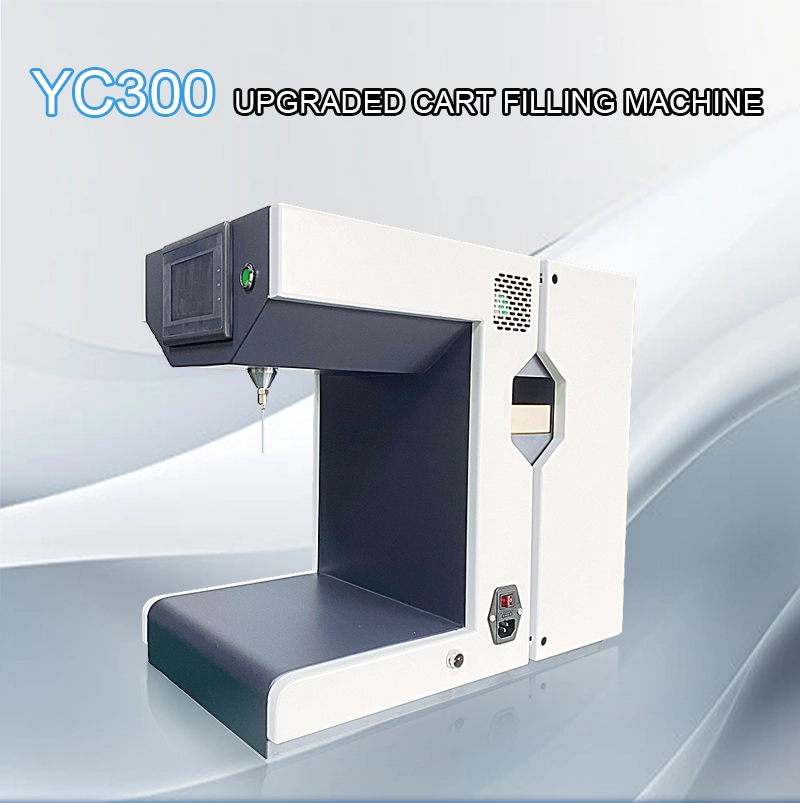

Longwill YC-300
Semi-Automatic CBD Cartridge Filling Machine with Short Oil Path

Built for controlled filling of thick cannabis oils, YC-300 combines a short oil path with a 1.5L oil basin, adjustable 0.2–7ml dosing, ±1% filling accuracy, and 0–120°C temperature control. Tray-based button operation and foot-pedal control give manufacturers two practical ways to manage semi-automatic cartridge filling.

Ideal for:

  • CBD and cannabis cartridge manufacturers handling viscous oils
  • Distillate cartridge production requiring controlled heating
  • Small-to-medium production teams needing flexible operation
  • Manufacturers looking to reduce oil residue and simplify cleaning
✓ Certified Quality ✓ Fast Delivery ✓ 24/7 Support

Improve Control in CBD Cartridge Filling

Thick oils, material residue, and changing fill volumes can make semi-automatic cartridge production harder to manage.

1. Thick Oils Can Be Harder to Dispense Consistently

CBD oil, distillate, HHC, and other viscous formulations can change flow behavior as temperature changes, increasing the risk of unstable dispensing.

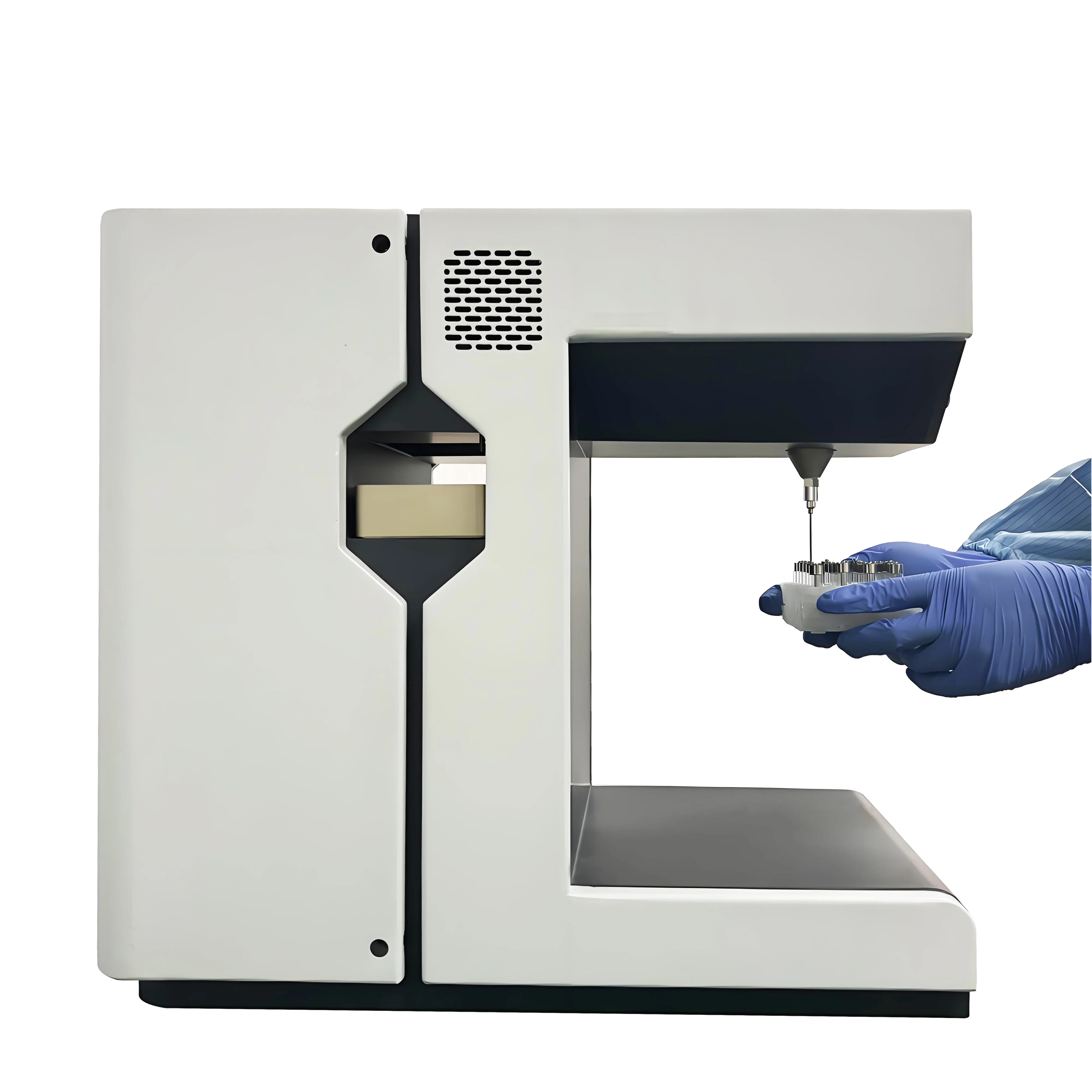

YC-300 dispensing thick cannabis oil

2. Long Material Paths Can Hold More Residual Oil

More material left inside tubing and transfer paths can make cleaning and oil changeovers slower while increasing avoidable product loss.

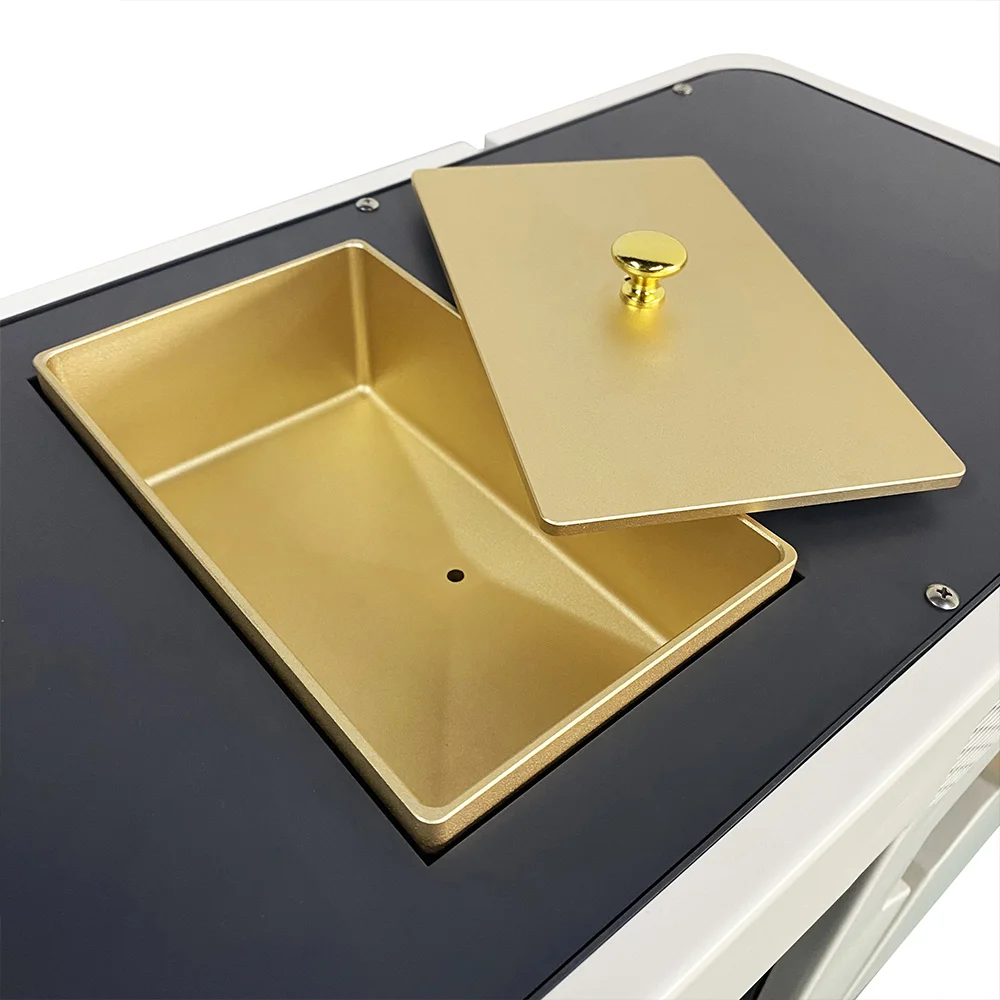

YC-300 oil basin with lid for easy cleaning

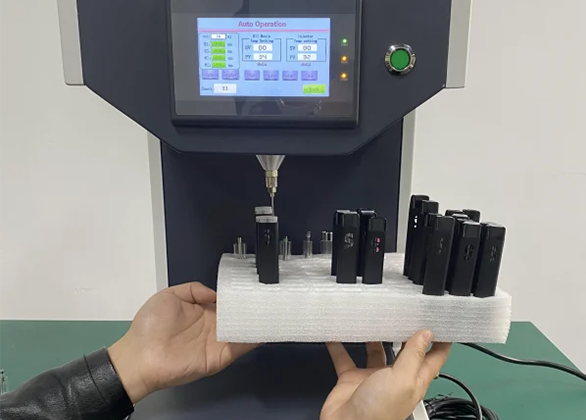

3. Different Products Need Different Filling Volumes

Cartridge and pen formats may require very different dosing volumes. A narrow filling range can limit the number of products one machine can support.

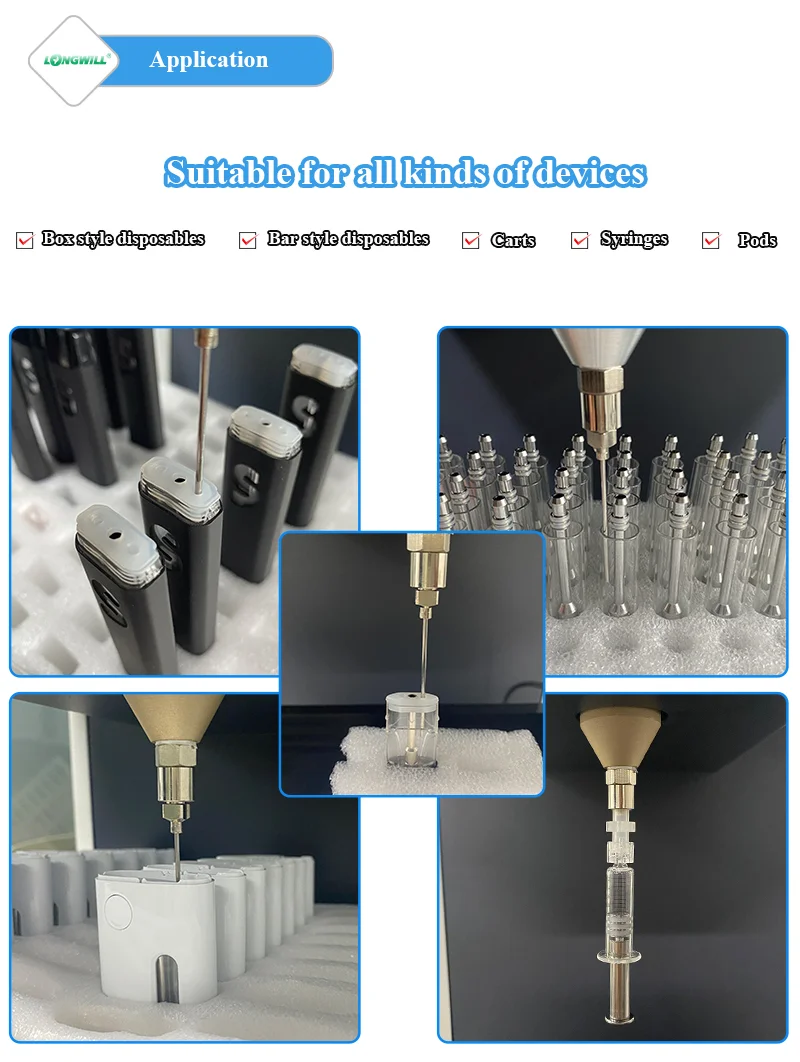

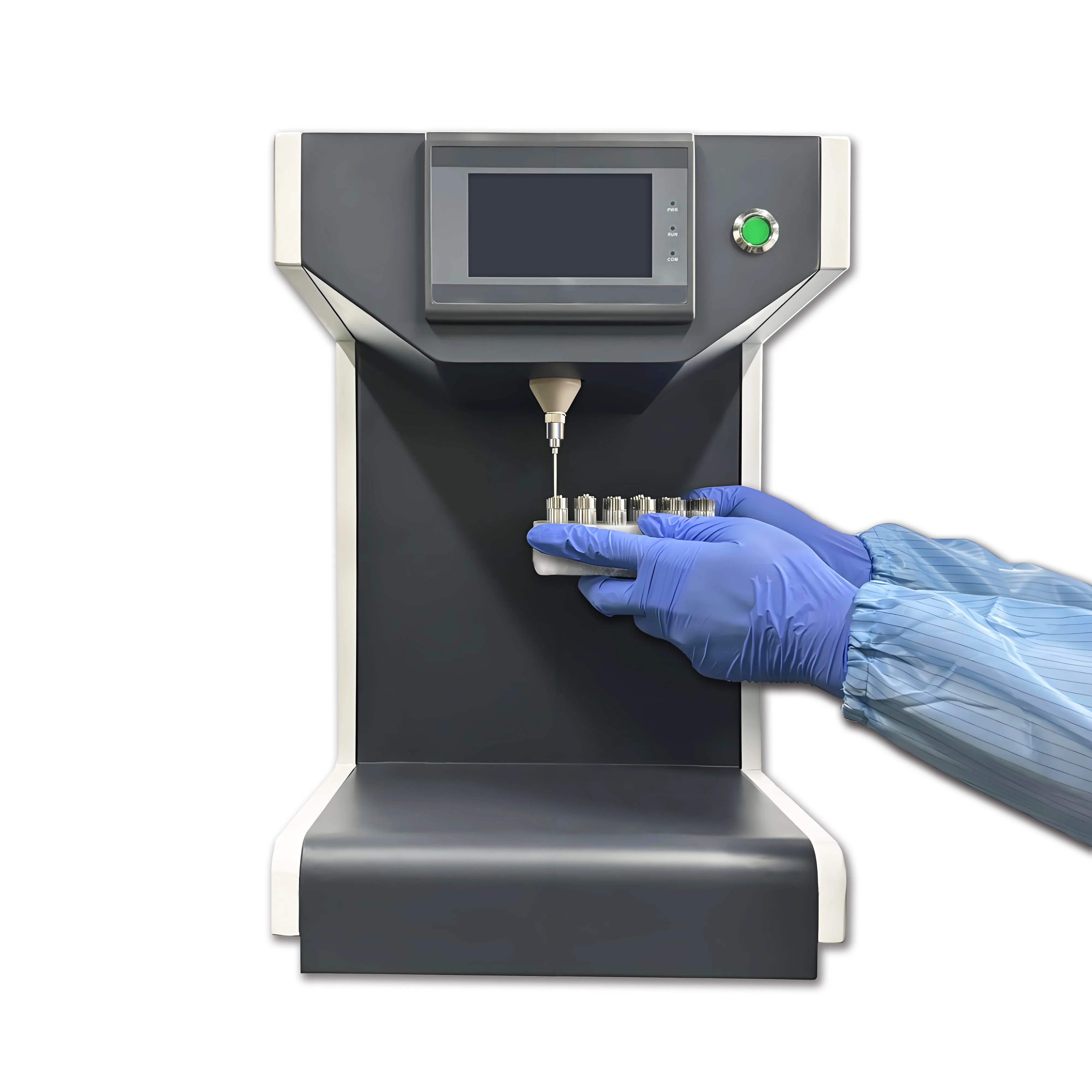

YC-300 filling different cartridge sizes

Handle Thick Oils with Less Waste and More Filling Flexibility

Short Oil Path for Easier Cleaning and Reduced Residue

0–120°C Temperature Control at the Oil Basin and Pump

0.2–7ml Adjustable Dosing with 0.1ml Increments

1.5L Oil Basin for Longer Semi-Automatic Production Runs

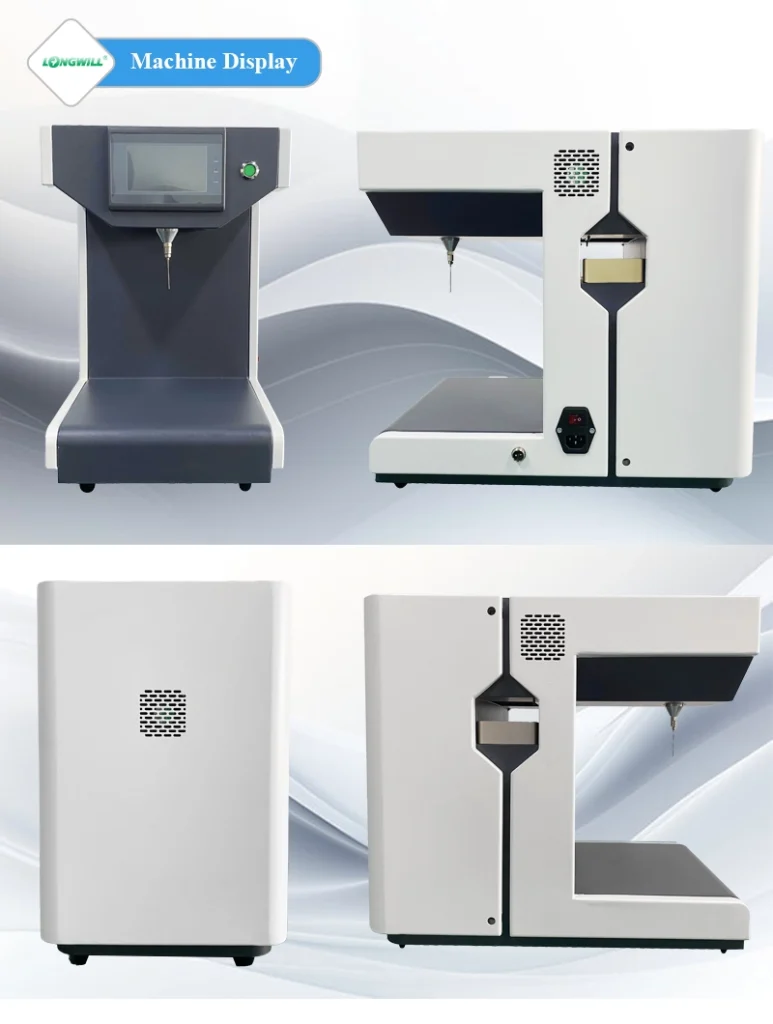

YC-300 Cartridge Filling System for Thick Oil Production

The system combines short-path material transfer, controlled heating, wide-range dosing, and flexible operator controls for CBD and distillate cartridge filling.

Short Oil Path for Easier Cleaning

A shorter material path reduces the distance oil travels between the reservoir and filling point, helping limit retained material and making cleaning or oil changes easier to manage.

Short Oil Path for Easier Cleaning

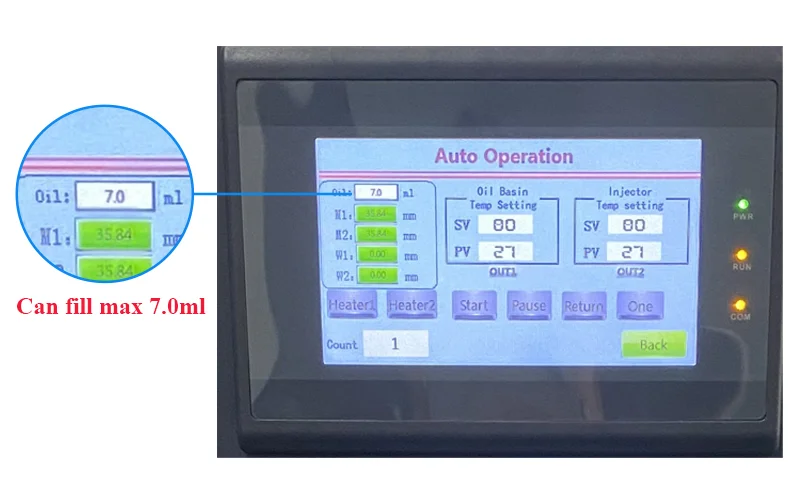

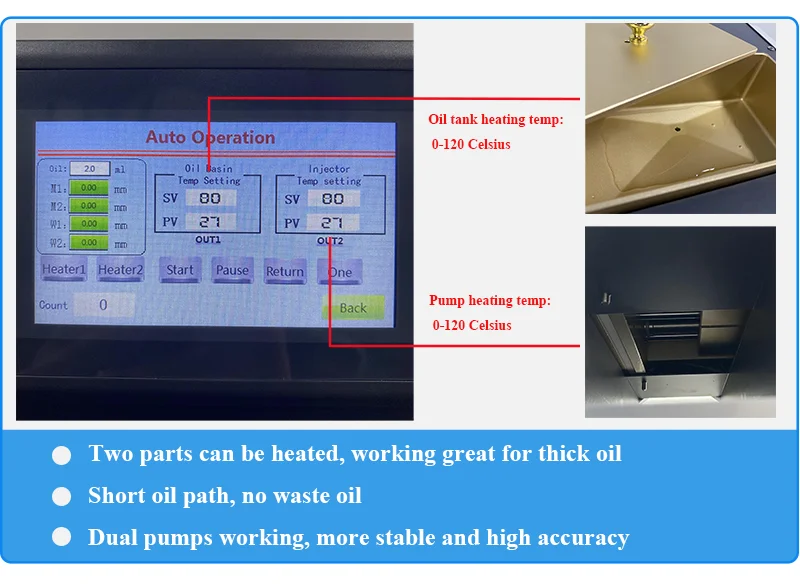

Two-Part Temperature Control

Two-Part Temperature Control

Separate temperature adjustment at the oil basin and pump helps maintain more stable flow when filling CBD oil, distillate, HHC, and other viscous formulations.

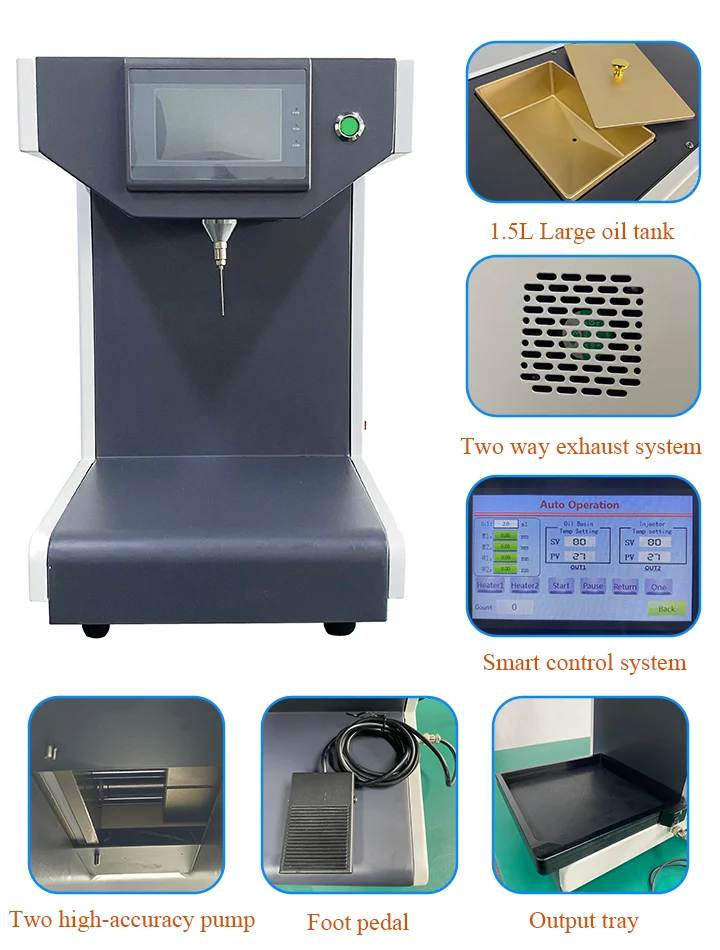

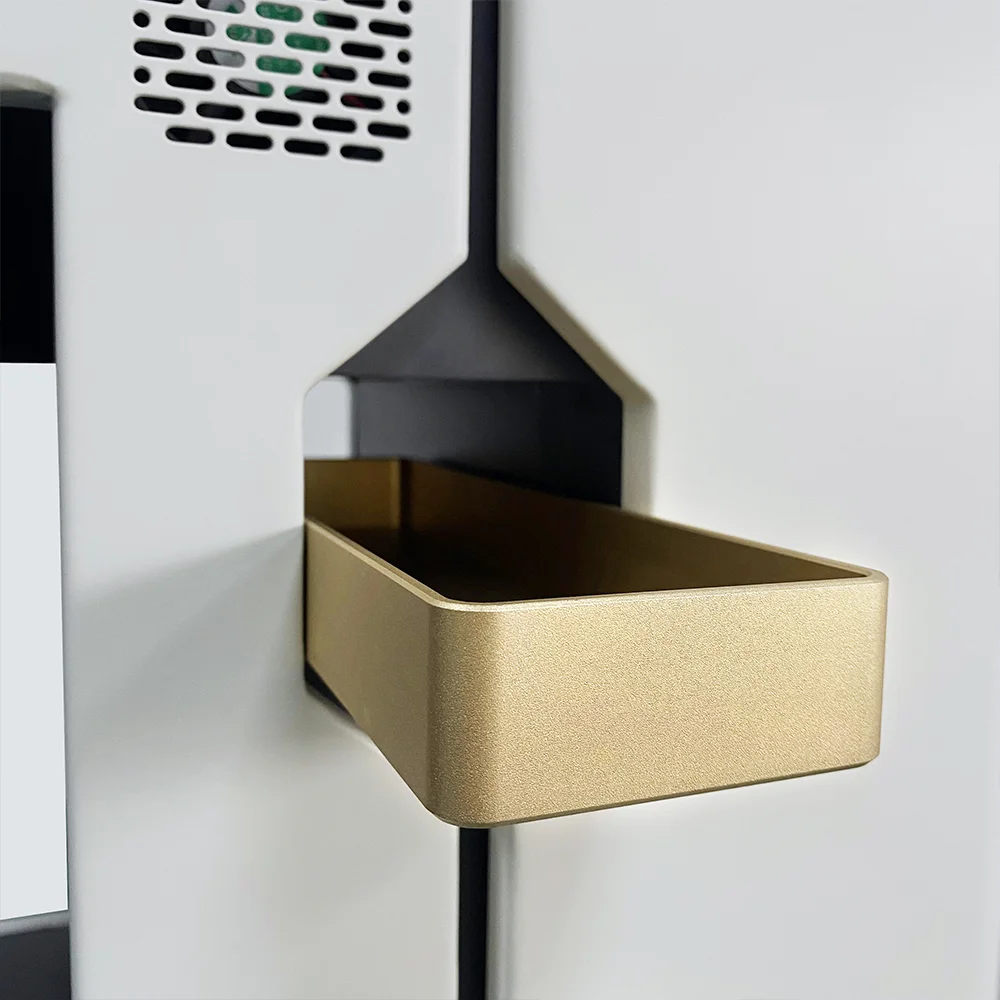

1.5L Large Oil Basin with Angled Design

The 1.5L oil basin supports longer production runs, while its angled design helps guide material toward the outlet and reduce unnecessary oil left in the reservoir.

1.5L Large Oil Basin with Angled Design
0.2–7ml Adjustable Dosing Range

0.2–7ml Adjustable Dosing Range

Filling volume can be adjusted from 0.2ml to 7ml in 0.1ml increments, giving manufacturers more flexibility across different cartridge and pen capacities.

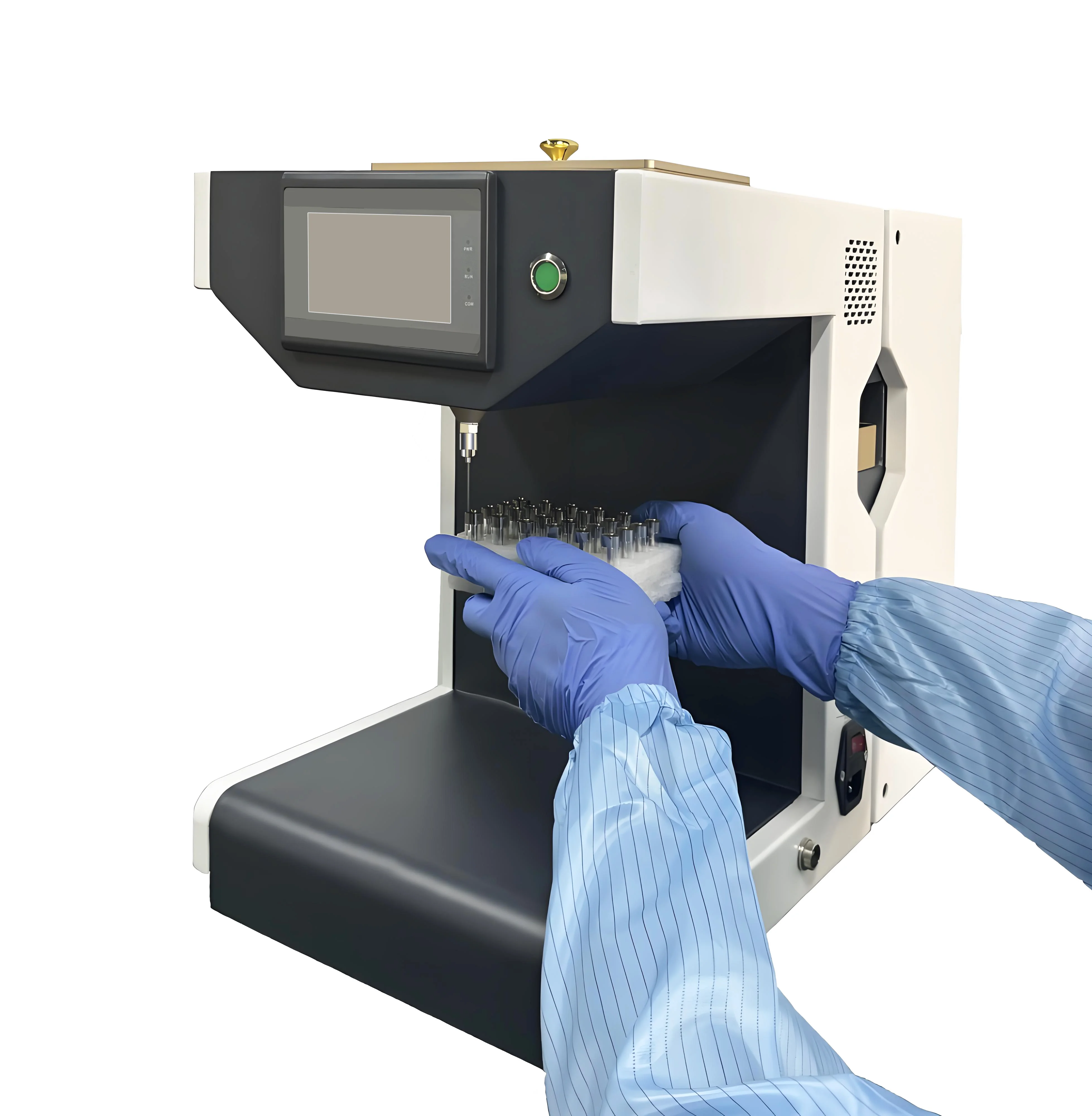

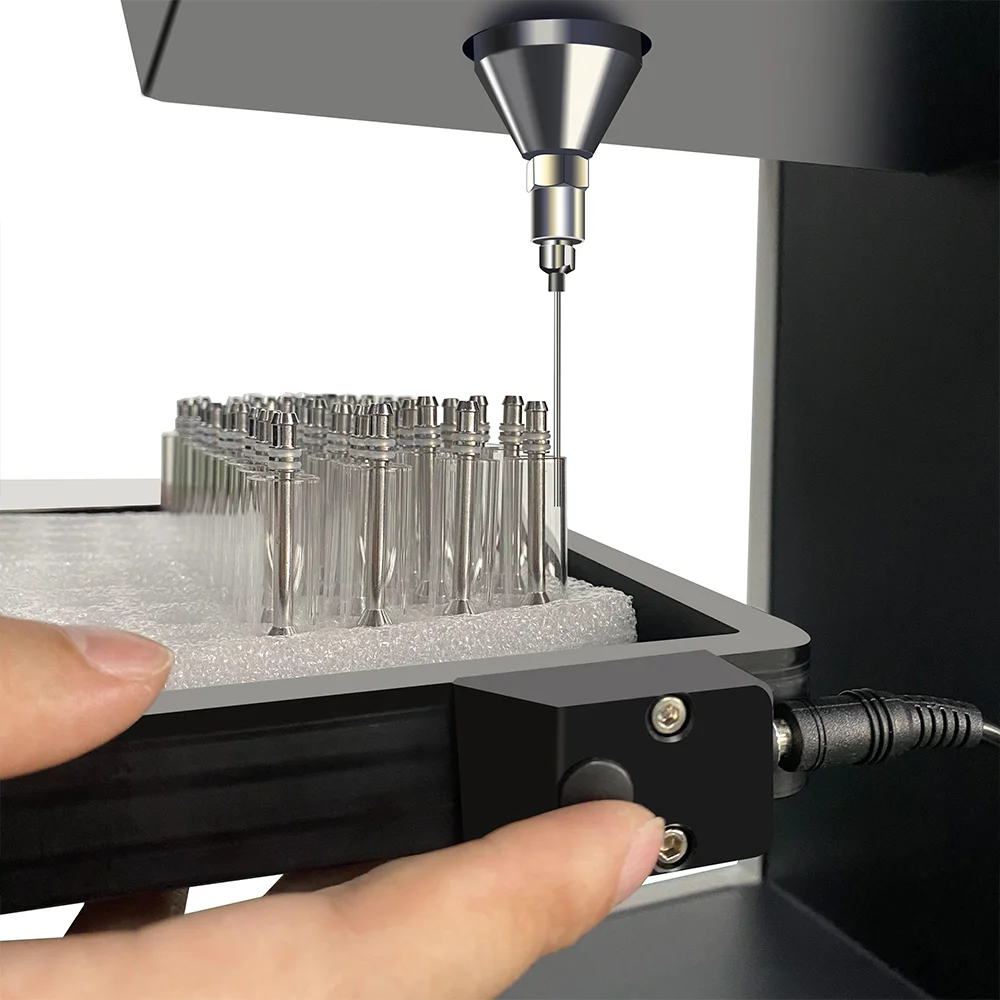

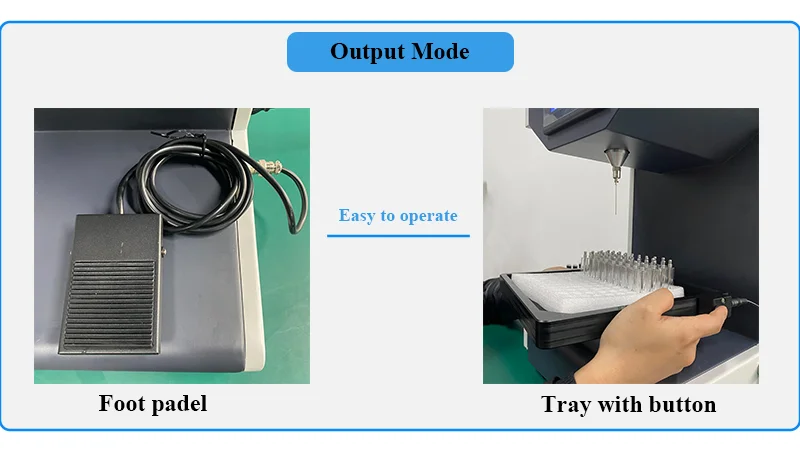

Tray or Foot-Pedal Filling Control

Operators can fill with trays using button control or work without trays using the foot pedal, allowing the operating method to match different production workflows.

Tray or Foot-Pedal Filling Control

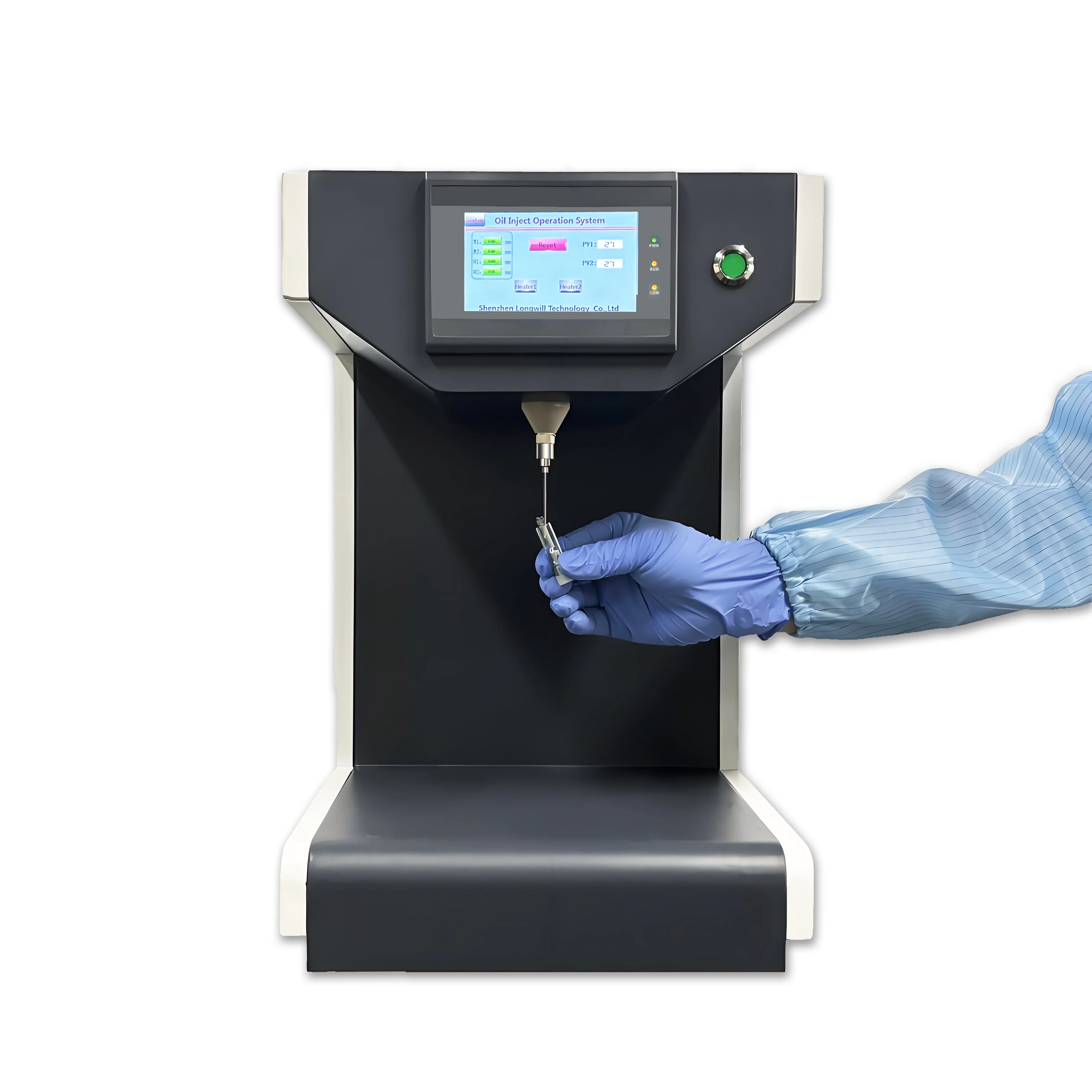

Smart Filling Control with Flexible Needle Options

Smart Filling Control with Flexible Needle Options

Longwill’s smart filling system uses stepper-motor and rail drive control, while needle sizes #14, #15, #16, #17, and #18 support different compatible cartridge and pen openings.

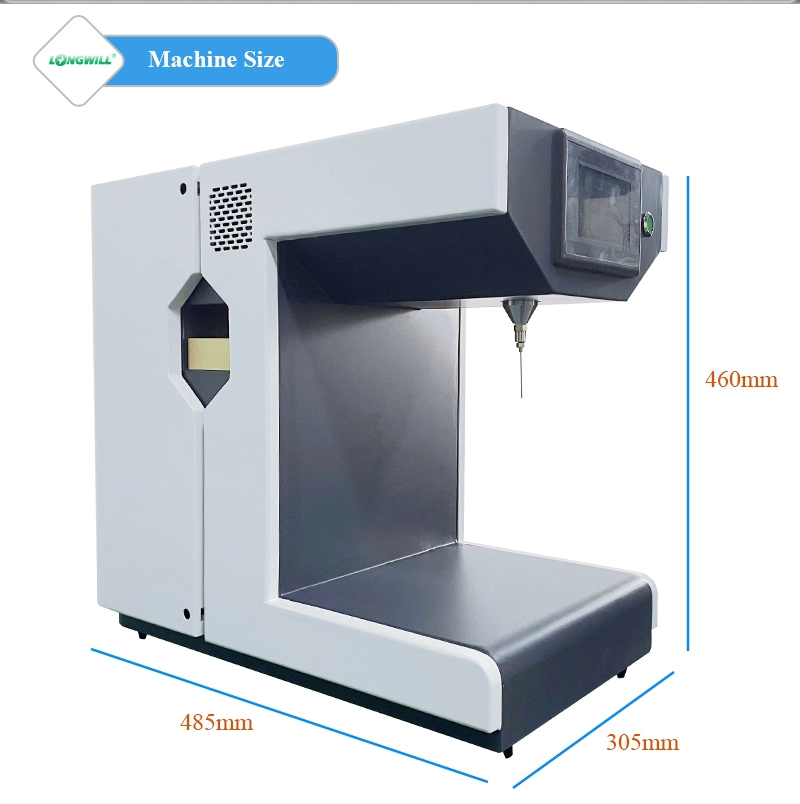

YC-300 Technical Specifications

Product NameSemi-Automatic CBD Cartridge Filling Machine
ModelLongwill YC-300

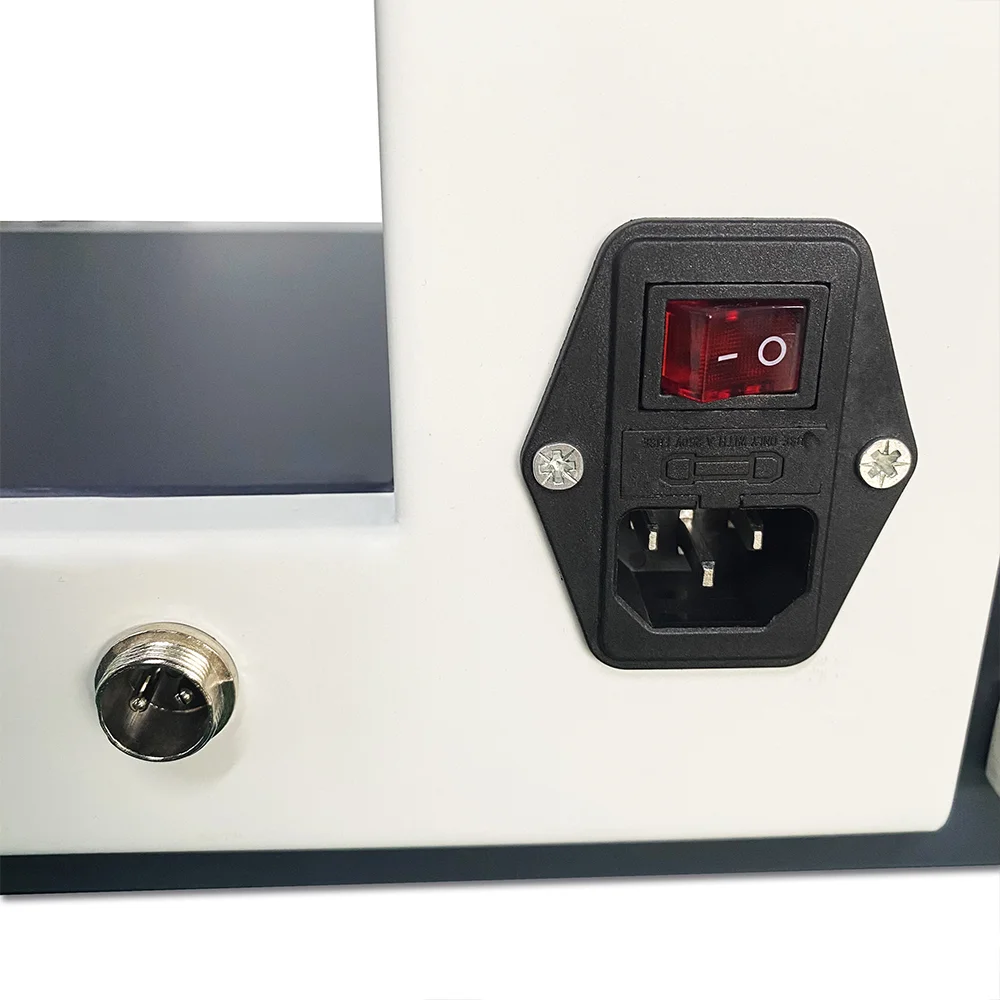

Power SupplyAC 110V / 220V
Filling Range0.2ml–7ml
Filling Adjustment0.1ml increments
Oil Filling Accuracy±1%
Temperature Range0–120°C
Heating AdjustmentOil basin + pump
Oil Basin Capacity1.5L
Working / Drive SystemLongwill smart filling system; stepper motor + rail drive
Published Output800–1,200 pcs/hour

Filling Solutions for CBD, Distillate, and Thick Cannabis Oils

Wide-range dosing and controlled heating allow YC-300 to support different oil conditions and cartridge production requirements without moving to full automation.

1. CBD Cartridge Filling

Use adjustable dosing and controlled heating for compatible CBD cartridge formats where stable oil flow and repeatable filling are required.

2. Distillate Cartridge Filling

The short oil path and two-part heating system support distillate applications that benefit from controlled material temperature during filling.

3. THC, HHC, and Delta Oil Filling

The machine is positioned for thick cannabis oils including THC-related distillates, HHC, Delta 8, Delta 9, Delta 10, and similar high-viscosity formulations.

What Users Say About YC-300

Feedback centered on oil handling, dosing flexibility, and day-to-day operation of the CBD cartridge filling machine.

★★★★★

“Cleaning was one of the things we wanted to improve. With the shorter oil path, there is less material left inside after a run, so switching to another oil is more straightforward than with our previous setup.”

— Formulation Technician
★★★★★

“We do not always fill the same cartridge size. Some runs are small, while others use larger-volume pens. The adjustable 0.2–7ml range means we can cover more of those jobs without setting up a different filler.”

— OEM Production Coordinator
★★★★★

“On repeat orders we normally use the tray because it keeps the workflow organized. For smaller custom jobs, the foot pedal is more convenient. Having both options makes the YC-300 easier to adapt to the way we actually work.”

— Small-Batch Manufacturing Operator
